BSP (ISO 228) thread check valves from China manufacturer

Price:	3.0~50.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: VU-G

Production Capacity: 5000set/month

Delivery Date: 30-45 days as per orders

Standard or Nonstandard: Standard

Structure: Check

Temperature of Media: Normal Temperature

Brand Name: Bolev

Working pressure: up to 500bar

OEM: acceptable, MOQ requested

Means of Transport: Ocean,Land,Air

Packing: Cartons and plywood pallets

Power: Hydraulic

Pressure: High Pressure

Material: Forged

Media: Oil

Function: Check valves

Quality: Zero leakage, 100% tested

Warranty: 13 months after date of on ...

1. BSP (ISO 228) thread check valve;
2. poppet type, steel;
3. pressure up to 500bar;
4. burst pressure 0.5bar;
5. available in stock

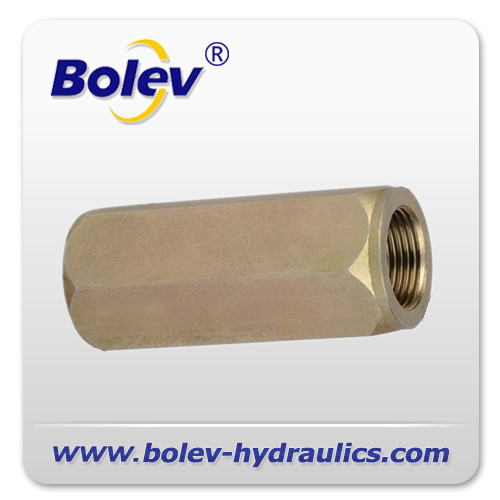

500bar VU-G BSP (ISO 228) thread check valves

VU-G check valve is BSP threaded check valves, both fittings are BSP female threads, working pressure up to 500bar. It has following characteristics:

   1. BSP (ISO 228) female thread on both ends
   2. Carbon steel poppet, heat treated and milled to fit;
   3. up to 500bar ;
   4. Zero leakage;
   5. reliable operation;
   6. changeable spring, flexible burst pressure;
   7. size ranges 1/8" to 2";
   8. easy to use, interchangeable with other manufacturers

OEM or special design can be acceptable with MOQ; SS304 and 316 not available in stock, only on special orders.

Notice: please pay attention to the flow direction when use check valves, or may cause unexpected damage.

Warrantee: 13 months after date of on board.

Features:

Description
VU check valves
Structure
1PC body, poppet design, hard seal, thread connection,
Thread
G/BSP (DIN ISO 228)
Body
Carbon steel, SS304, SS316 (for SS material, we have minimum quantity request)
Poppet
Carbon steel
Spring
0.5bar burst pressure as standard, can be order on request.
Surface
Phosphoric, Cr3+ Silver Zinc

Description
DPOCV DUAL PILOT OPERATED CHECK VALVE
Structure
Double pilot operated check valve, piston operated, poppet design, reliable movement, Zero leakage
Thread
G/BSP (DIN ISO 228),NPT (ANSI B1.20.1),DIN 2353 Light series
Body
Carbon steel,
Piston
Carbon steel
Poppet
Carbon steel
Pilot ration
as per described, can be made on request
Accessaries
Nuts and cut rings need to be order aditionally for tube fitting connection (DIN 2353)
Surface
Cr3+ Silver Zinc

Dimensions:

DN
Part No.
L/min
Burst Pressure
PN (bar)
L
E
S
D
T
G/NPT
08
VU-08***
30
±0.4/0.7
500
62
21.5
19
19
12
1/4"
10
VU-10***
45
±0.4/0.7
500
68
27.5
24
24
14
3/8"
12
VU-12***
70
±0.4/0.7
500
77
34.5
30
30
15
1/2"
16
VU-16***
110
±0.4/0.7
400
88
41.5
36
36
16
3/4"
20
VU-20***
160
±0.4/0.7
350
105
47
41
41
18
1"
25
VU-25***
210
±0.4/0.7
350
130
63
55
55
20
11/4"
30
VU-30***
320
±0.4/0.7
350
138
75
65
65
22
11/2"
40
VU-40***
460
±0.4/0.7
250
160
92
80
80
24
2"
