hydraulic flow regulators from China manufacturer - Ningbo BOLEV Hydraulics Co.,Ltd

Price:	5.0~50.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: VRFB-G

Production Capacity: 5000set/month

Delivery Date: 30-45 days or as per orders

Standard or Nonstandard: Standard

Structure: Regulating

Temperature of Media: Normal Temperature

Woring pressure: up to 320bar

OEM: acceptable, MOQ requested

Warranty: 13 months after date of on ...

Means of Transport: Ocean,Land,Air

Packing: Cartons and plywood pallets

Power: Manual

Pressure: High Pressure

Material: Forged

Media: Oil

Quality: Zero leakage, 100% tested

Interchangeability: Interchangeable

1. hydraulic flow regulators;
2. without check valve;
3. BSP (ISO 228) thread;
4. in line mounting;
5. compact, accurate;

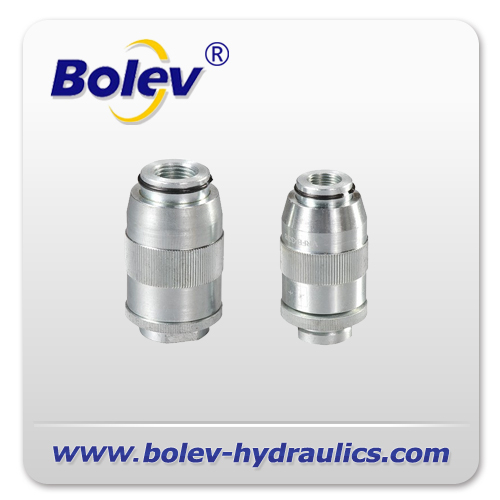

VRFB-G BSP(ISO 228) thread hydraulic flow regulators

VRFB-G BSP (ISO 228) thread hydraulic flow regulators, flow control valves without ceck valves, steel material, it has following characteristics:

   1. BSP (ISO 228) thread;
   2. accurate flow control;
   3. both way flow control;
   4. check valve burst pressure 0.5bar;
   5. working pressure up to 320bar;
   6. steel structure.

OEM is acceptable, MOQ will be requested.SS304 or 316 are NOT available in stock.
Notice: it is one way flow control valve; please pay attention to flow direction when installing the valves in your system.
Warranty: 13 month after date of on board.

Features:

Description
VRFB Throttle valve
Structure
hardened needle, thread connection, both way flow control
Thread
G/BSP (DIN ISO 228),NPT (ANSI B1.20.1),SAE (SAE J 514 UN/UNF)
Body
Carbon steel, SS304, SS316 (for SS material, we have minimum quantity request)
Spring
0.5bar burst pressure as standard, can be order on request.
Knob
steel
Surface
Cr3+ Silver Zinc

Dimensions:

VRFB-G BSP(ISO 228) thread hydraulic flow regulators

Part No.	DN	PN	L	D		S
VRFB-04	06	32	62	G1/4	NPT1/4	21
VRFB-06	08	32	78	G3/8	NPT3/8	26
VRFB-08	10	32	80	G1/2	NPT1/2	30
VRFB-12	15	28	100	G3/4	NPT3/4	36
VRFB-26	20	25	118	G1	NPT1	41
