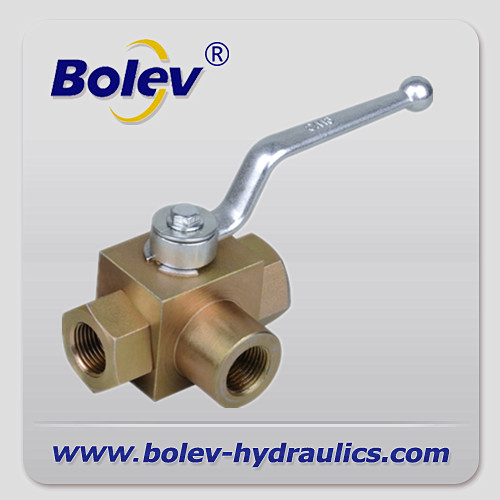

7250psi KHB3K NPT 3 way high pressure ball valves
KHB3K NPT 3 way high pressure ball valves is a series of 2 position 3 way ball valves, it is built with high strength carbon steel, 3 pc design, it has following characteristics:
1. up to 7250psi;
2. blow out proof;
3. NPT (ANSI B1.20.1) , SAE ( J 514 UN/UNF) thread available for North American market;
4. interchangeable with other brands in the markets;
Notice: KHB3K ball valves are not allowed to introduce pressure from the other 2 side ports, only mid port is allowed to introduce pressure, otherwise, leakage is inevitable; throttle use is always prohibited.
Warranty: 13 months after date of on board.
Dimensions:
| Part No. | PN | DN | LR | RA | d1 | i | L | L1 | B | H | h1 | h2 | SW1 | SW2 | S |
| KHB3K-NPT1/8 | 500 | 04 | 06 | / | NPT1/8 | 10 | 69 | 40 | 26 | 45 | 13.5 | 33 | 09 | 22 | 35 |
| KHB3K-NPT1/4 | 500 | 06 | 06 | / | NPT1/4 | 14 | 69 | 40 | 26 | 45 | 13.5 | 33 | 09 | 22 | 35 |
| KHB3K-NPT3/8 | 500 | 10 | 10 | / | NPT3/8 | 14 | 72 | 42 | 32 | 49 | 16 | 36 | 09 | 27 | 36 |
| KHB3K-NPT1/2 | 500 | 13 | 12 | / | NPT1/2 | 16 | 83 | 48 | 35 | 49 | 17 | 40 | 09 | 30 | 40 |
| KHB3K-NPT1/2 | 400 | 16 | 15 | / | NPT1/2 | 16 | 83 | 48 | 38 | 61 | 19 | 45 | 09 | 32 | 42 |
| KHB3K-NPT3/4 | 315 | 20 | 20 | / | NPT3/4 | 18 | 95 | 60 | 48 | 70 | 25 | 55 | 12 | 41 | 49 |
| KHB3K-NPT1 | 315 | 25 | 25 | / | NPT1 | 21 | 113 | 65 | 57 | 79 | 28.5 | 64 | 12 | 50 | 56.5 |
| KHB3K-NPT11/4 | 315 | 32 | 32 | / | NPT11/4 | 22 | 110 | 84 | 75 | 101 | 37.5 | 84 | 14 | 60 | 62.5 |
| KHB3K-NPT11/2 | 315 | 40 | 38 | / | NPT11/2 | 24 | 130 | 91 | 85 | 112 | 42.5 | 95 | 14 | 70 | 61 |
| KHB3K-NPT2 | 315 | 50 | 48 | / | NPT2 | 26 | 140 | 100 | 105 | 131 | 52.5 | 112 | 14 | 80 | 62.5 |
