high pressure ball valves with filter
| Price: |
30.0~100.0 USD |
| Payment Terms: |
T/T,L/C |
| Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
LLP-07
Production Capacity:
1000sets/months
Delivery Date:
60 days or as per order con...
Standard or Nonstandard:
Others
Structure:
Ball
Temperature of Media:
Normal Temperature
Brand Name:
Bolev
Function:
1 way flow, with filter
Warranty:
13 months after date of on ...
Means of Transport:
Ocean,Land,Air
Packing:
Cartons and plywood pallets
Power:
Manual
Pressure:
Medium Pressure
Material:
Forged
Media:
Oil
Working pressure:
up to 400bar
Quality:
Zero leakge, 100% tested
1. hydraulic ball valve with net filter;
2. only one way flow;
3. DN25, DN32, tube size 35, 42mm;
4. up to 400bar

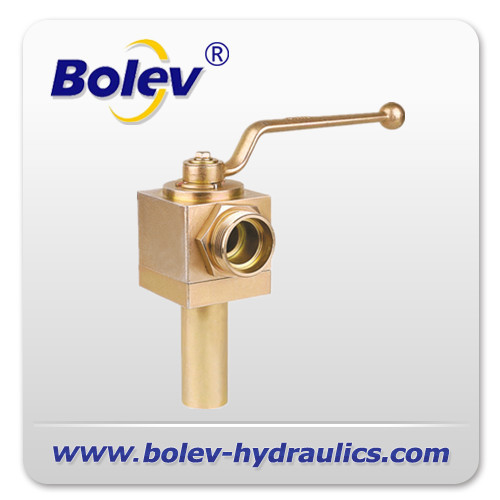

Hydraulic LLP07 high pressure ball valves with filter
LLP-07 series high pressure ball valves with filter. It is a high pressure ball valve inserted with a stainless steel filter net. it has following features:
1. up to 400bar;
2. one way flow, only allow to introduce pressure from tube side, otherwise, leakage would happen;
3. stainless steel net inserted in the valve;
4. available with DN25, DN32, tube size 35, 42;
NOTE: 1. only one way flow is allowed: pressure is only allowed to introduce from the tube side, otherwise, leakage would be happen; 2. throttle or half open/close would bring damage to ball seat, thus lead to leakage of ball valves.
Warrany: 13 months after date of on board.
Hydraulic symbol:
Dimensions:
| Part No | PN | H1 | H2 | H3 | H4 | A | L1 | L2 | d1 | d2 | D1 | D2 | D3 | SW |
| LLP07-DN25-35LR-35 | 400 | 6 | 27 | 27 | 103 | 70 | 16 | 35 | 30 | 35 | 30 | 35 | M45X2 | 50 |
| LLP07-DN32-42LR-35 | 400 | 5 | 37.5 | 37.5 | 103 | 84 | 16 | 24 | 30 | 35 | 30 | 42 | M52X2 | 60 |
| LLP07-DN32-42LR-42 | 400 | 5 | 37.5 | 37.5 | 103 | 84 | 16 | 24 | 36 | 42 | 30 | 42 | M52X2 | 60 |
