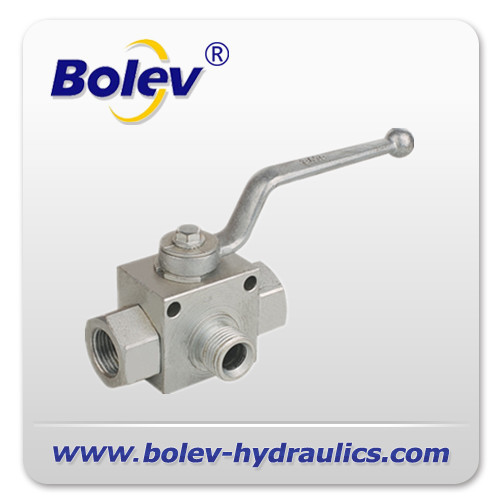

VH3V-G BSP 3 way high pressure ball valves:
VH3V-G BSP 3 way high pressure ball valves, it has following features:
1. 2 position, 3 way;
2. 3 PC structure, blow out proof stem;
3. Zero leakage, 100% tested before delivery;
4. all female thread available;
5. up to 500bar;
6. custom mounting hole size acceptable, MOQ requested.
OEM or special design can be acceptable with MOQ; SS304 and 316 available on orders.
Notice: KHB3K
ball valves are not allowed to introduce pressure from the other 2 side ports, only mid port is allowed to introduce pressure, otherwise, leakage is inevitable; throttle use is always prohibited.
Warranty: 13 months after date of on board.
Dimensions:
| Part No. | PN | DN | LW | RA | d1(D2) | i | L | L1 | B | L2 | h1 | h2 | SW1 | SW2 | D | h3 | L3 | D1 | C |
| VH3V-G1/4 | 500 | 6 | 6 | / | G1/4 | 14 | 69 | 40 | 26 | 32 | 14 | 35 | 9 | 22 | 4.5 | 4.8 | 26 | 6 | 4 |
| VH3V-G3/8 | 500 | 10 | 10 | / | G3/8 | 14 | 72 | 42 | 32 | 32 | 16 | 40 | 9 | 27 | 5.3 | 5.8 | 31 | 8 | 4 |
| VH3V-G1/2 | 500 | 13 | 12 | / | G1/2 | 16 | 83 | 48 | 35 | 39 | 18 | 45 | 9 | 30 | 6.5 | 6 | 35 | 12 | 3 |
| VH3V-G3/4 | 400 | 20 | 20 | / | G3/4 | 18 | 93 | 60 | 50 | 49 | 23 | 58 | 12 | 41 | 6.5 | 6 | 44 | 15 | 5.5 |
| VH3V-G1 | 350 | 25 | 25 | / | G1 | 21 | 115 | 65 | 57 | 51 | 28 | 65 | 12 | 46 | 8.5 | 7 | 54 | 22 | 5 |
